Descripción

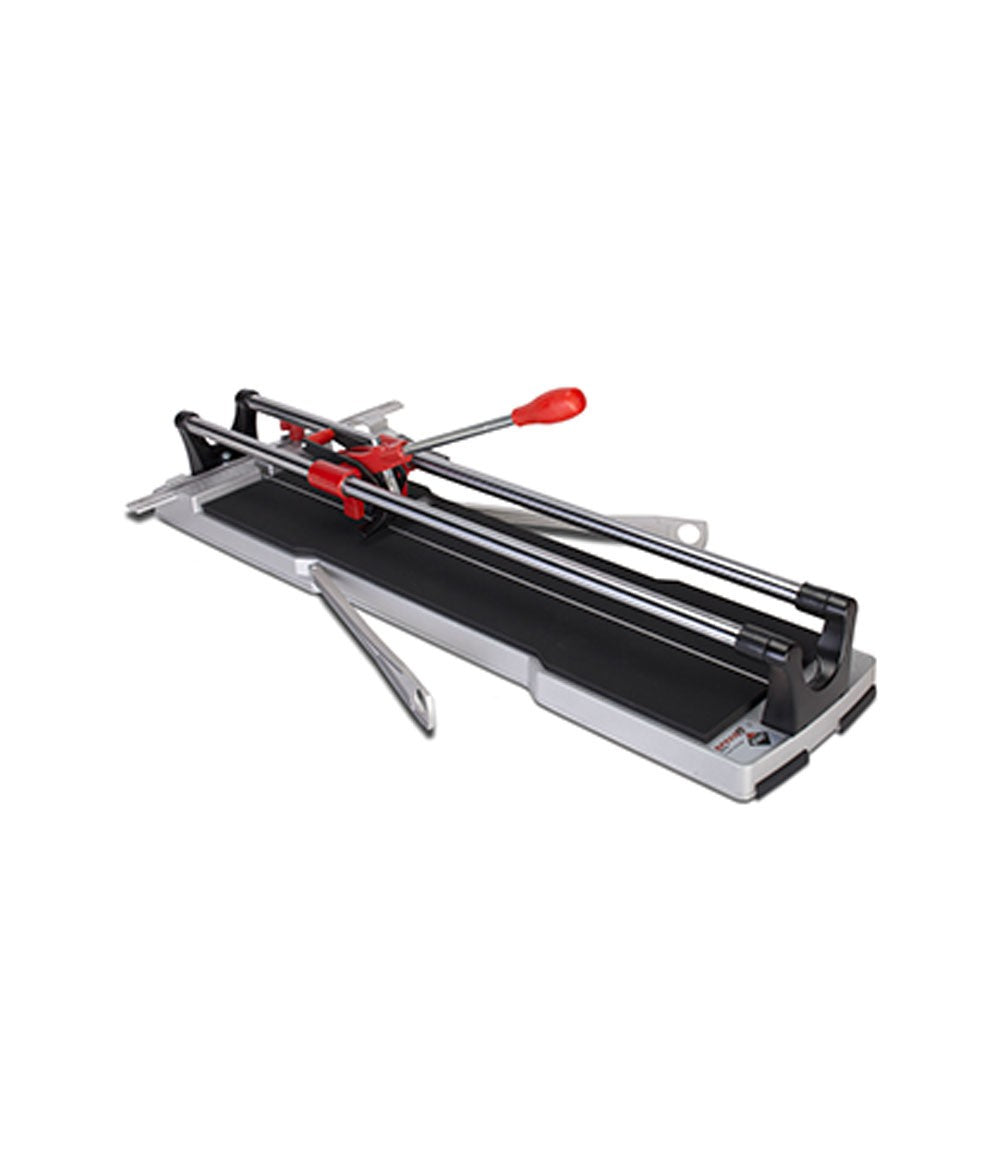

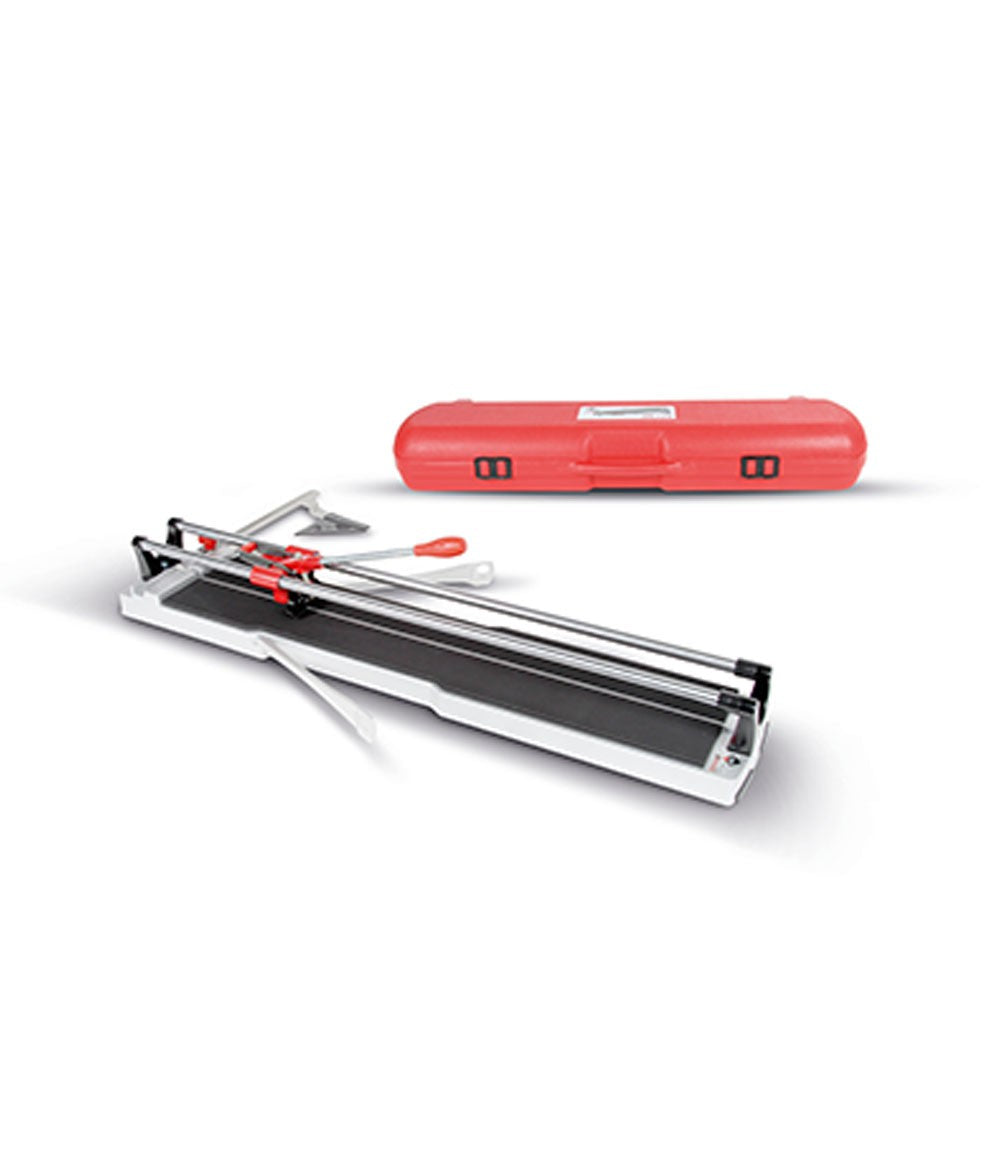

Rubi Manual Cutter for intensive cutting of tiles (type BIII) and for glazed stoneware (type BIIa), and which on very specific occasions requires extra power for sporadic cutting of porcelain stoneware (type BIa).
The RUBI SPEED PLUS manual cutter has a multi-point separator, perfect for obtaining great results in diagonal or angular cuts.
CHARACTERISTICS
- Multi-point separator for a perfect end-to-end diagonal cut
- Base supplement for greater ceramic stability and ease of cutting
- Aluminum structure for greater robustness, lightness, and ease of transport
- Rollers adaptable to each material to obtain maximum performance and cutting quality
- Chromed and rectified steel guides, with anti-corrosion treatment
- Millimeter side stop for repetitive cuts and 45º square
- Interchangeable rollers from Ø 6 to 22 mm
- Roller Ø 8 mm. Including
- Direct view of the scratch and cut line
- Aluminum base supplement and larger separator assembly
- Solid guides of Ø 20 mm. For greater resistance to torsion
SPECIFICATIONS
- Cutting length - 72 cm
- Diagonal cut length - 51x51 cm
- Cutting height - 6-15 mm
- Separator power - 600 kg
