Descripción
Miter saw with innovative XPS shadow cut indicator line provides accurate and fast blade alignment while illuminating the workpiece to increase productivity

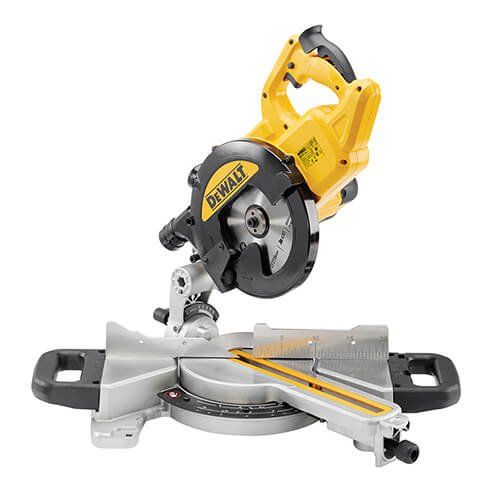

DWS774 MITER SAW FEATURES
- The classic miter saw design improved and updated for the modern user
- New 1400 W motor for powerful cutting on all materials
- Innovative XPS shadow cut indicator line provides accurate and fast blade alignment while illuminating the workpiece to increase productivity
- Improved efficiency for connecting a vacuum cleaner
- The base and guide have been milled to meet the needs of the most demanding jobs
- Head locking feature allows head to be locked to restrict travel function for finishing applications and greater ease of transport
- It has preset cutting angles of 15°, 22.5°, 30° and 45°. It also includes a quick fixing lever up to 50º
- Left shift guard with measuring scale to improve material management and support
- Internal telescopic rail design, huge cutting capacity and easy transportation
- Side handles for easy transportation
- Designed for cutting wood only and should not be used to cut any metal (ferrous or non-ferrous)
DWS774 MITER SAFE SPECIFICATIONS
Power | 1400W |
Output power | 1100W |
Blade speed | 4500rpm |
Blade diameter | 216mm |
Inside diameter | 30mm |
Beveling capacity | 48° |
Miter Capacity (Right/Left) | 48/48° |
Chap. Cut at 90º/45º (P x H) | 173 x 62mm |
Chap. Cut at 90º/90º (P x H) | 250x62mm |
Chap. Cut at 90º/90º (P x H) | 250x60mm |
Chap. Cut at 45º/90º (P x H) | 177 x 62mm |
Chap. Cut at 45º/90º (P x H) | 177 x 60mm |
Chap. Cut at 90º/45º (P x H) | 265 x 48mm |
Max. 45°/45° cutting capacity | 190x48mm |
Max. Cutting depth (saws) | 70mm |
Weight | 12.0kg |
Depth | 550mm |
Length | 490mm |
High | 590mm |
Hand/Arm Vibration - Wood | 2.1 m/s² |
Uncertainty K 1 (vibration) | 1.5 m/s² |
Acoustic Pressure | 104dB(A) |
Uncertainty K 2 (sound) | 3.9dB(A) |
Sound pressure | 93dB(A) |
Uncertainty K 3 (sound) | 3dB(A) |
DE7023 WORKBENCH FEATURES
High-performance workbench for Miter Saws 1.7 m piece support bar with the ability to extend up to 3.83 meters. The support bar can hold up to 227 kg of weight.
Support pieces can become depth stops to cut pieces to the same size. Integrated legs for quick assembly of the bench and integrated carrying handle for easy transportation.
The CPROF473 INCLUDES
- TCT saw blade
- Hex wrench
- Jaw
- DWS774 Miter Saw
- Workbench DE7023
